VW T6 Audio – Security and Multimedia Upgrades

September 16, 2022

VW T6 Audio – Security and Multimedia Upgrades – Alpine Halo 9 ” Multimedia Unit – Audison Speakers – Phoenix Gold Subwoofer – Meta S5 Deadlock – Reverse Camera | B&B Audioconcepts Cardiff


VW T6 Audio – Security and Multimedia Upgrades

This VW T6 drove in for some upgrades to freshen its functionality, technology and security. The Audioconcepts team covered off Audio, Security and Multimedia for this install. Scroll down below for full description of what was installed and all technical information.

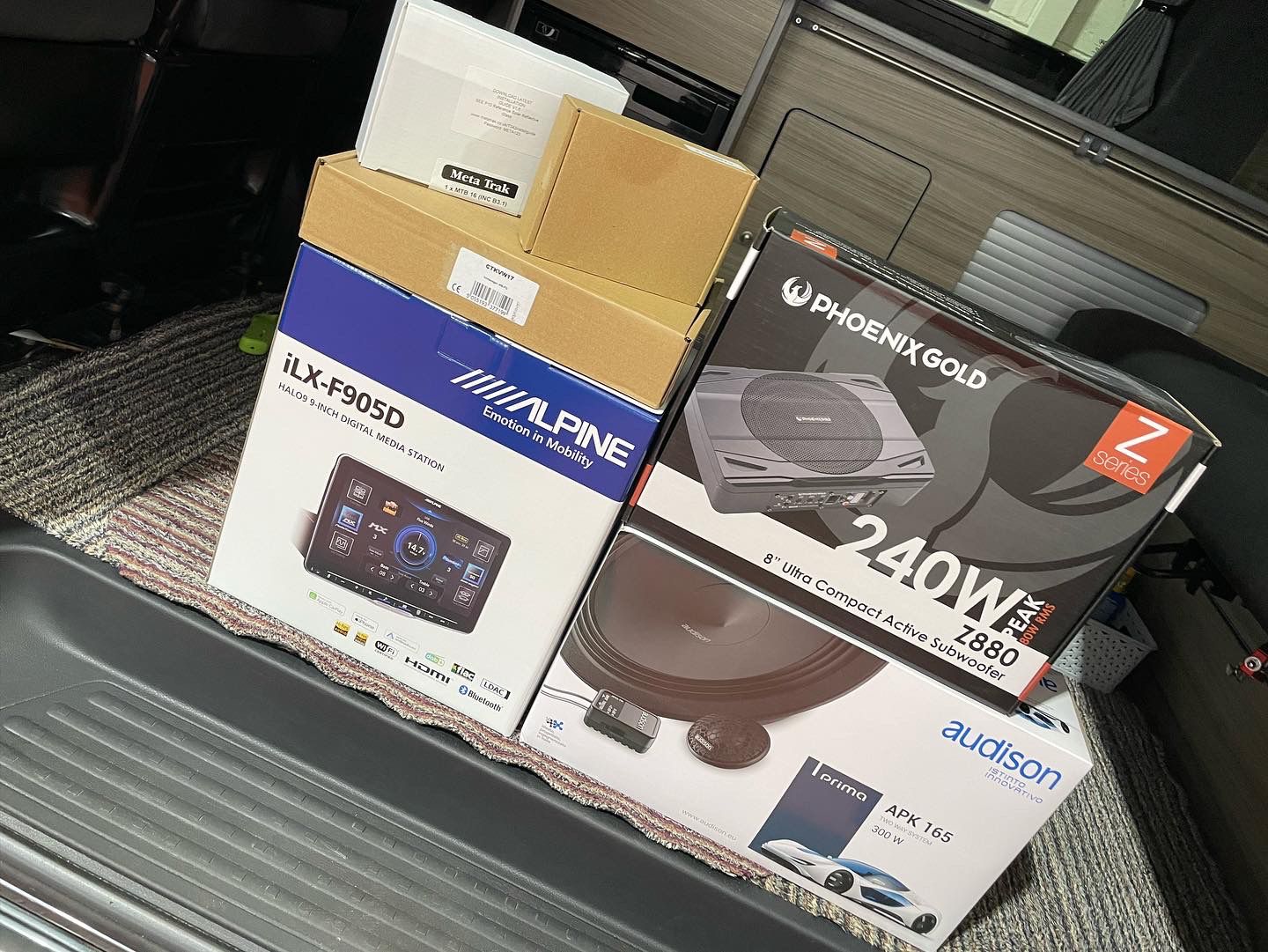

VW T6 Audio – Security and Multimedia Upgrades :

  • Alpine Electronics of UK Ltd.
  • Alpine 9” halo multimedia unit

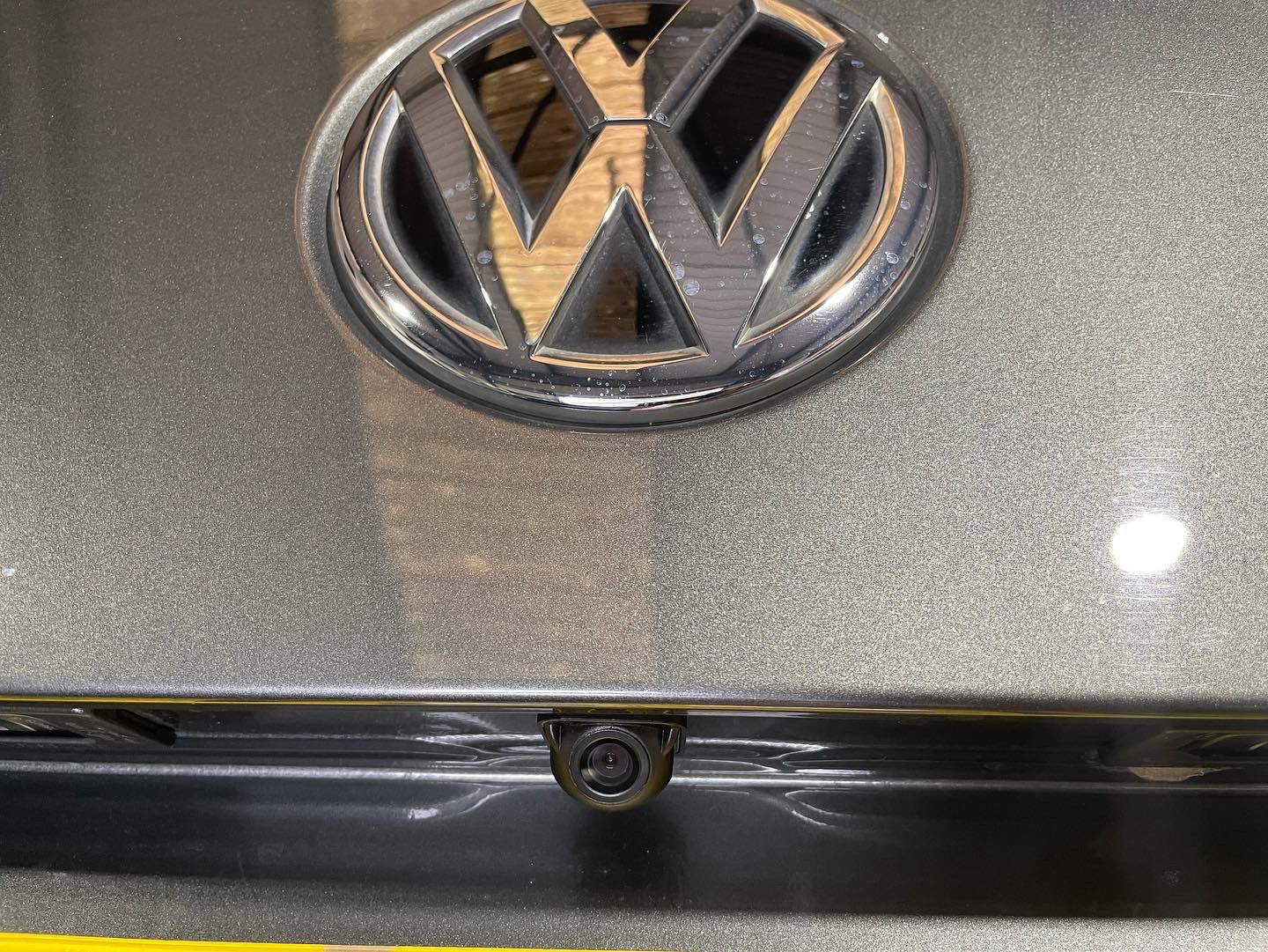

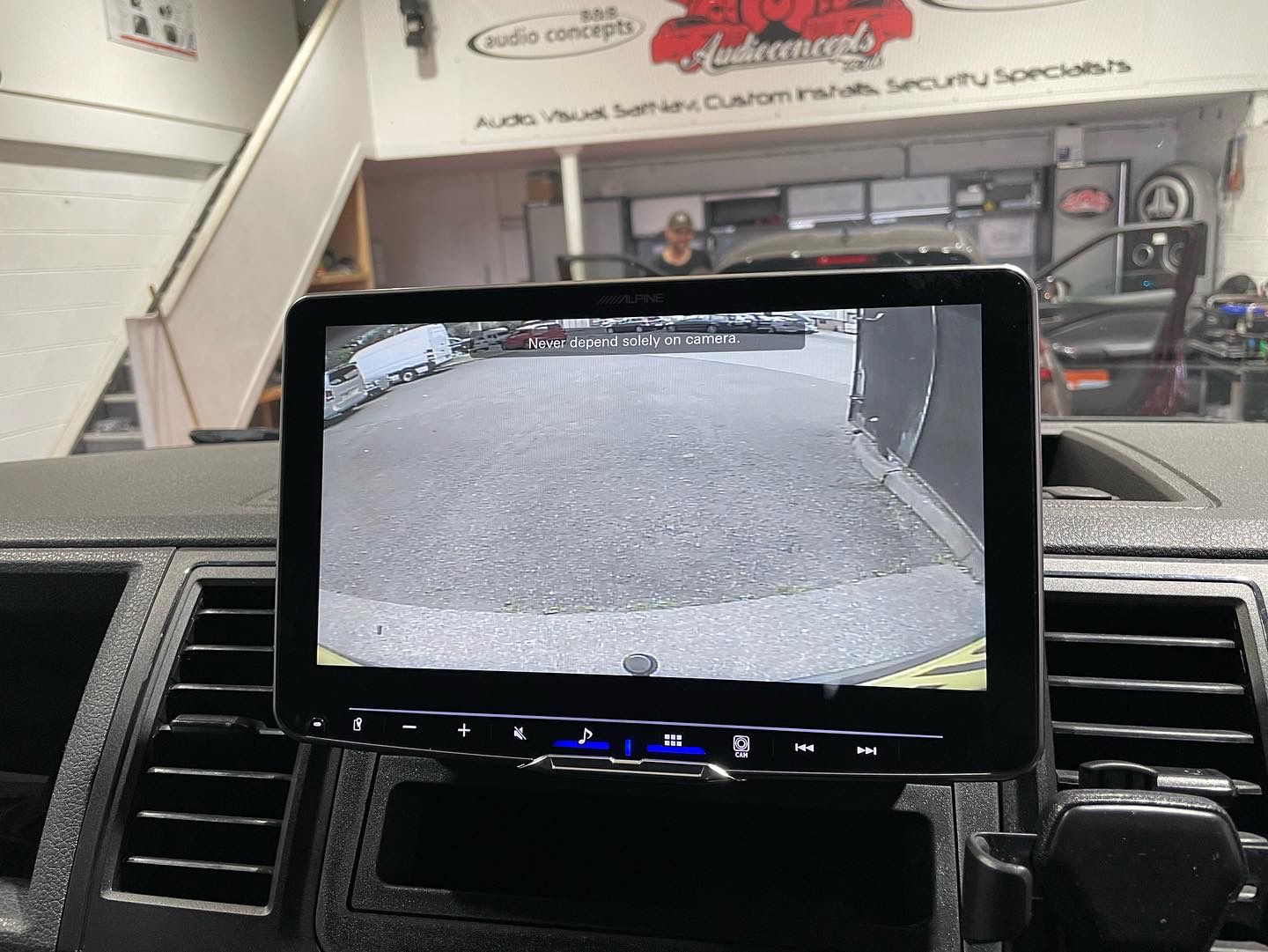

  • Rear camera
  • Audison speaker’s
  • Phoenix gold subwoofer
  • Skinz soundproofing
  • Meta s5 deadlock tracker

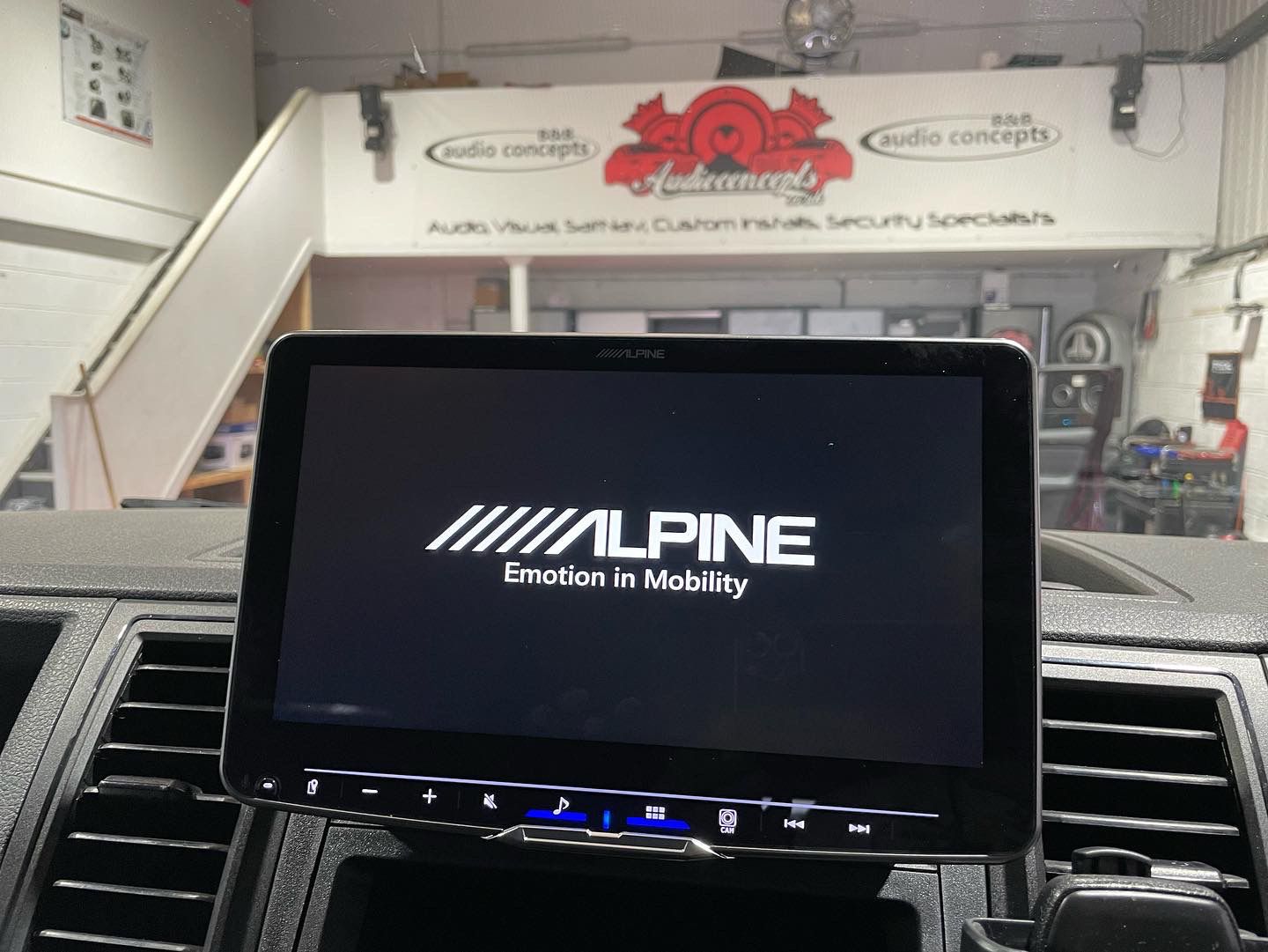

Alpine Halo 9 Inch Multimedia Unit

The HALO9 has a beautiful 9-inch WVGA touchscreen which only uses an adjustable mount attached to a 1-DIN chassis for installation. The default position has the screen’s sliding mount pushed out with it sitting at a 90-degree angle. The bottom of the screen is then centered with the 1-DIN chassis. The screen hovers over or in front of the dash and consumers have the option to position it 20mm deep and up to 30mm higher (or lower) than the default position. The hovering position gives the deck a clean and modern silhouette. The screen can be tilted between four pre-set angle points (45º, 20º, 0º, -20º).


The HALO9 comes equipped with Apple Car Play and Android Auto for seamless, hands-free incorporation of the most popular mobile phone technologies. The deck also has an HD Radio tuner built-in.  Maps, music, messages, and phone calls are controlled from and displayed on the HALO9’s touchscreen.

The system is also compatible with Bluetooth technology for audio streaming and hands-free calling features. A USB port is included with the HALO9’s cable bundle for connected video or audio playback, an AUX input, and HDMI input. The HAL09 has a mech-less design, which means that there is no CD/DVD slot, but one can be added with a player that is sold separately.

In addition to the standard Apple Car Play and Android Auto apps, there are a few popular apps such as Waze, Spotify, and Amazon Music that are accessible through the Alpine Unit. You have the ability to customize the shortcuts that appear on your touchscreen so that you can have your most popular audio sources and phone settings available at a simple touch.


  • 9-inch WVGA capacitive touchscreen
    Audio, video and Bluetooth® feature set
    Works with Apple CarPlay®
    Android Auto™ now with the Google Assistant
    HD Radio™ tuner built-in
    Made for iPod® and iPhone®
    Pandora control from iPhone® and Android™ smartphones
    FLAC/MP3/WMA/AAC/HE-AAC music playback via USB
    Alpine TuneIt® App integration
    BT Plus Bluetooth® wireless technology with audio streaming
    My Favourites feature provides custom shortcuts to favourite audio sources, places and phone numbers
    Touch screen control of electrical accessories via KAC-001 External Accessory Control Module (sold separately)
    4-way swipe action graphical interface control
    Touch screen control of multiple camera systems via KCX-C2600B Multi-Camera Selector Interface (sold separately
    One HDMI input


Audison APK 165

Two way system features AP 1 tweeter and AP 6.5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Technical Data
Comp 2 way System
Size 165 mm (6.5″) Woofer
26 mm (1″) Tweeter
46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover
Power Handling 100 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 60 – 20k Hz
Sensitivity 93,5 dB/Spl

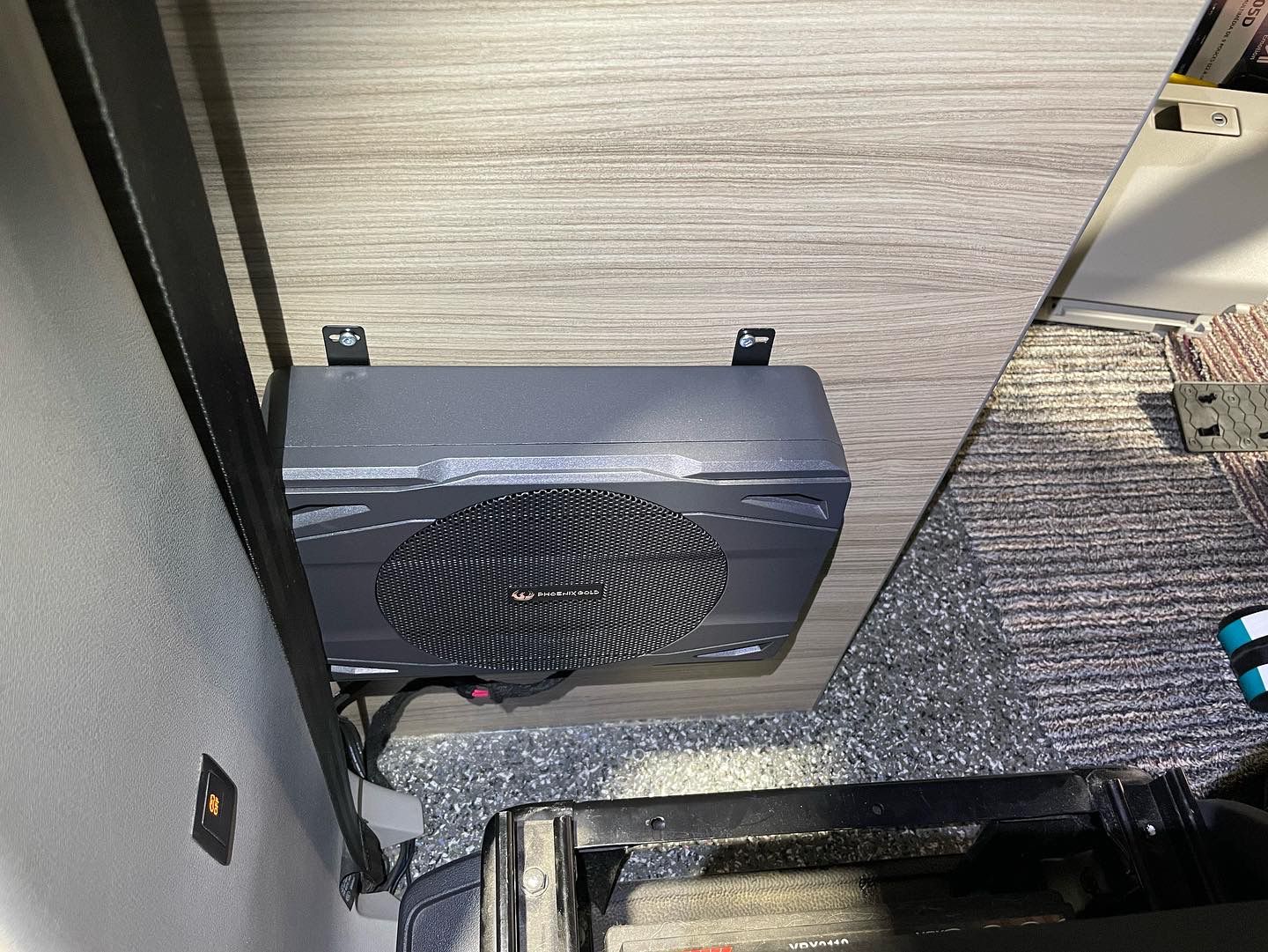

Phoenix Gold Subwoofer

The Z880 is an 8″ ultra-compact, fully aluminium active subwoofer from Phoenix Gold. This subwoofer has been optimised to fit into almost any small space in the vehicle including under seats or limited boots. The powerful MOSFET amplifier delivers 80Watt RMS and up to 240W Max.

Product features:

  • Ultra compact subwoofer
    80W RMS 240W Max
    Dimensions – 290mm x 210mm x 70mm
    AutoStart on high-level input
    Remote gain control
    High and low level input
    Power & high-level cable quick connector
    Aluminium casing
    Subsonic filter at 20Hz
    Phase control
    Variable Bass boost 0-12 Boost



Sophisticated tracking technology combined with an easy-to-use app.
​Increasing security and connecting you and your vehicle, wherever you are.

Looking to reduce your insurance premiums with an insurance approved, Thatcham accredited, tracking solution? Or simply keep tabs on your car from wherever you are, whenever you want, with a self-monitored service?

There are 36.7 million vehicles on the UK roads today! Having a Meta Trak device installed puts you in control of your vehicle.

>> ​With live tracking, you’ll know what your car (or the driver in it) is doing at all times.
>>> Get instant alerts directly to your phone if anything out of the ordinary is detected.​
>>> Assess driving efficiency or set up geo fencing – ideal for checking if a young or recently qualified driver is safe.
>>> Choose from one of our insurance approved products for ultimate peace of mind with 24/7 Security Operating Centre monitoring, Driver ID –tags and immobiliser option.

Key Features of META S5 TRAK:

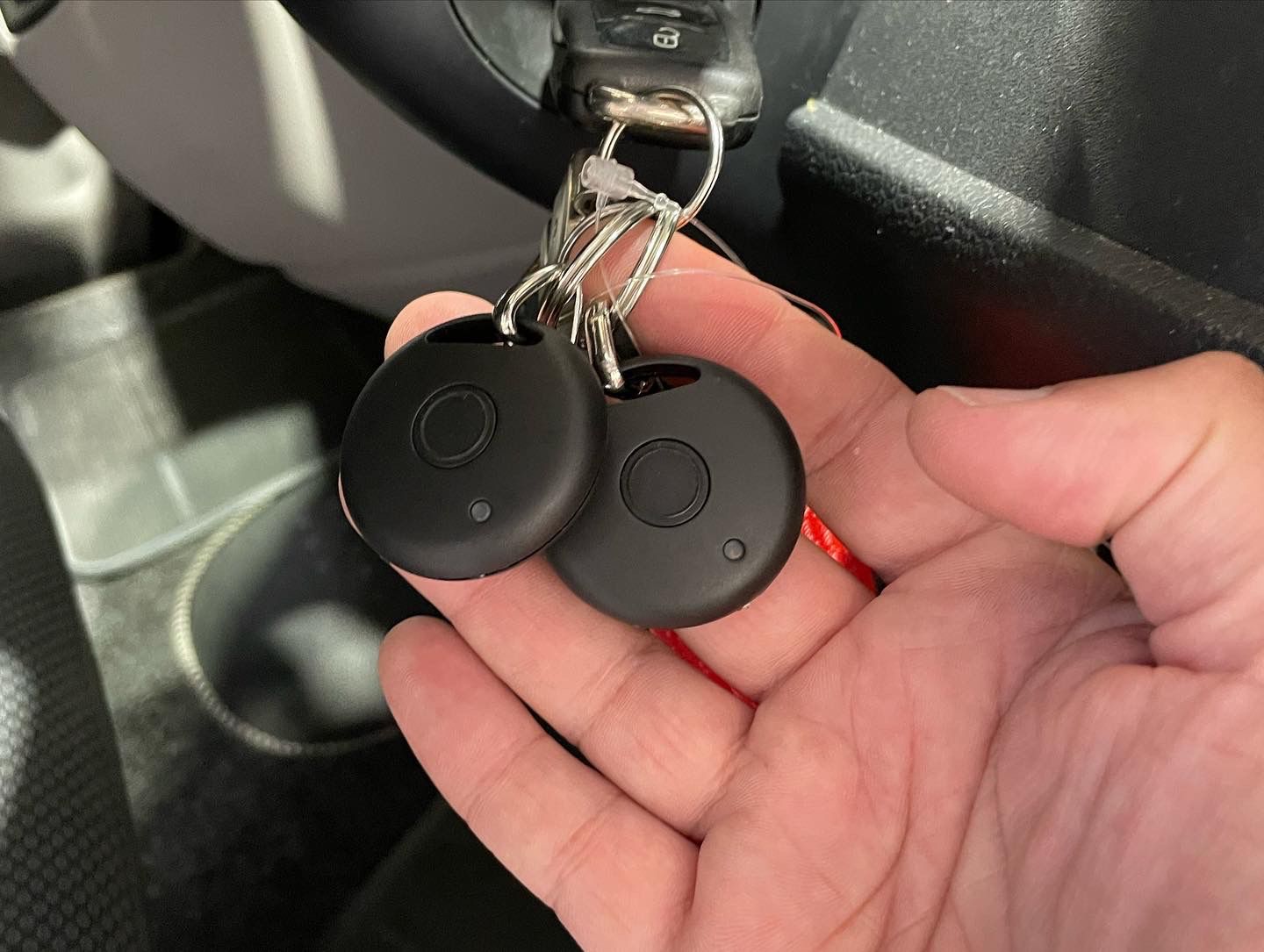

>>> ID Tags to fight modern day theft methods

>>> 24/7 control room monitoring

>>> Live tracking from smartphone, tablet and desktop

>>> Instant alerts if anything out of the ordinary is detected, such as unauthorised movement, low battery and battery disconnect

>>> Journey history and driving score

>> UK & EU coverage


Skinz Soundproofing

Good car audio begins with properly treated doors and panels. Flexing metal panels and expanses of plastic cause a myriad of issues with car sound from bass cancelling road noise to annoying shakes rattles and vibrations. A flexing metal panel can effective sap the energy away from your speakers by creating inter-cancellation at the rear of your speaker while other surfaces can produce unwanted nasty resonances which colour the sound. Our sound deadening and panel lining products go as far as possible in eradicating these products while our wave diffuser will absorb the sound issuing from the rear of your speakers to prevent that sound reflecting back into the speakers. The importance of sound treatment such as the Skinz range should never be underestimated.
