Nissan 300ZX Retro Audio Upgrade

November 25, 2022

Nissan 300ZX Retro Audio Upgrade – Focal Amplifier – Audison APK 165 – Hertz DCX | B&B Audioconcepts Cardiff



Nissan 300ZX Retro Audio Upgrade

This proper old skool Nissan 300ZX roared in for a period audio upgrade, for a what I hear you say! I said a period audio upgrade, it looks incredible to be honest and the pictures and video will show you exactly why. I mean who doesn’t appreciate a retro ride, they have a lot of character and look very unique, what do you think? Add your comments in B&B Audioconcepts YouTube channel.

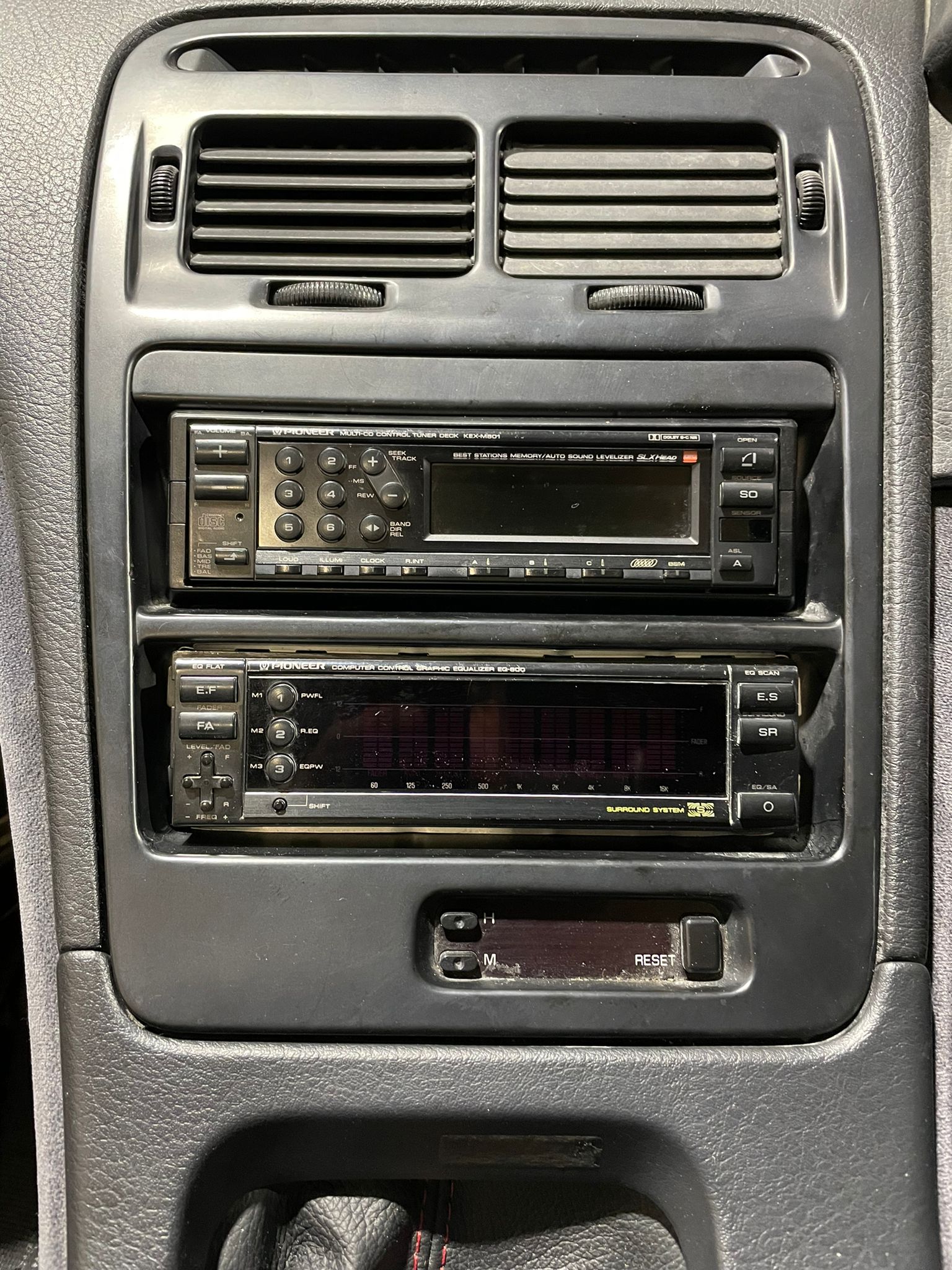

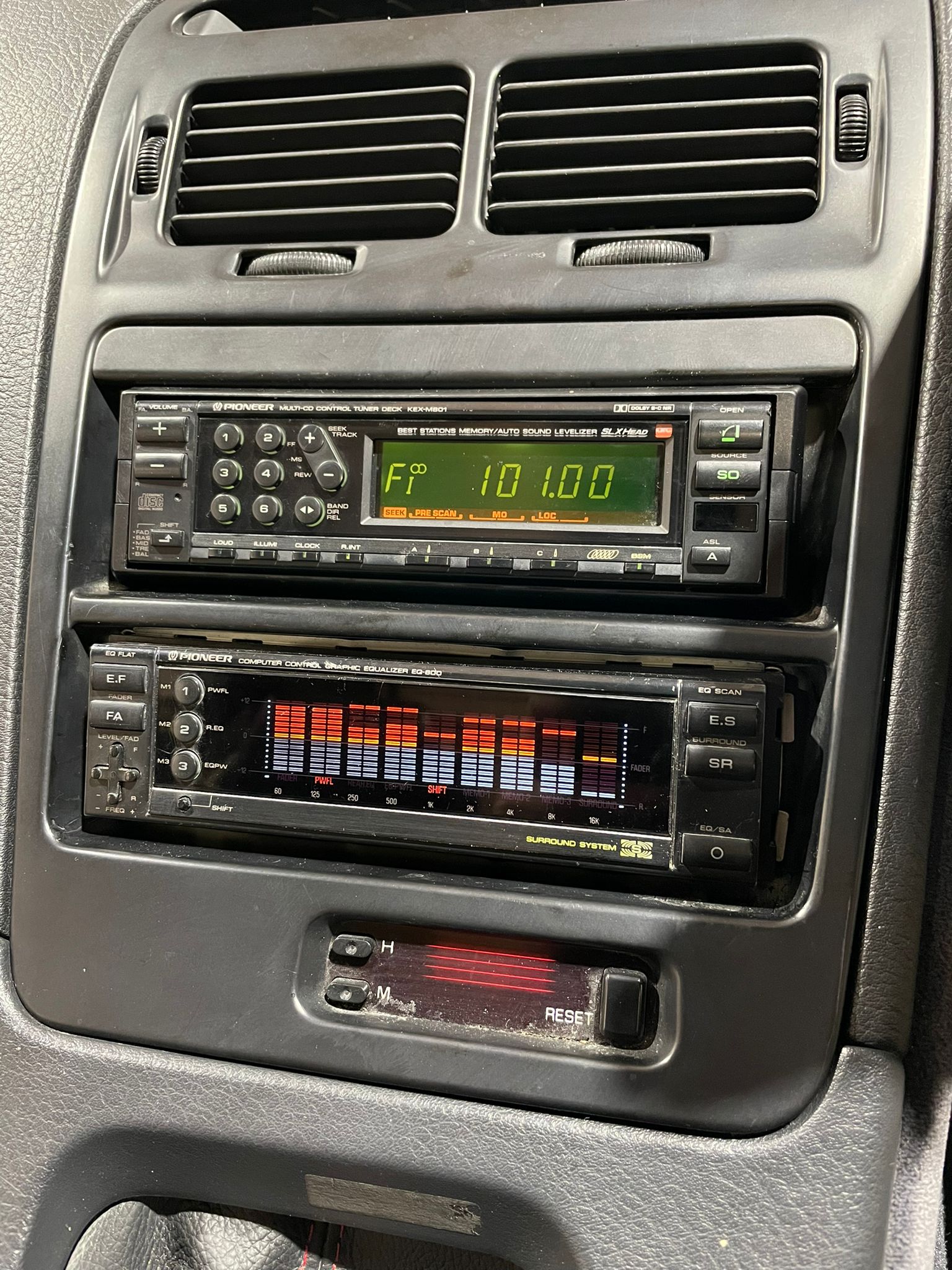

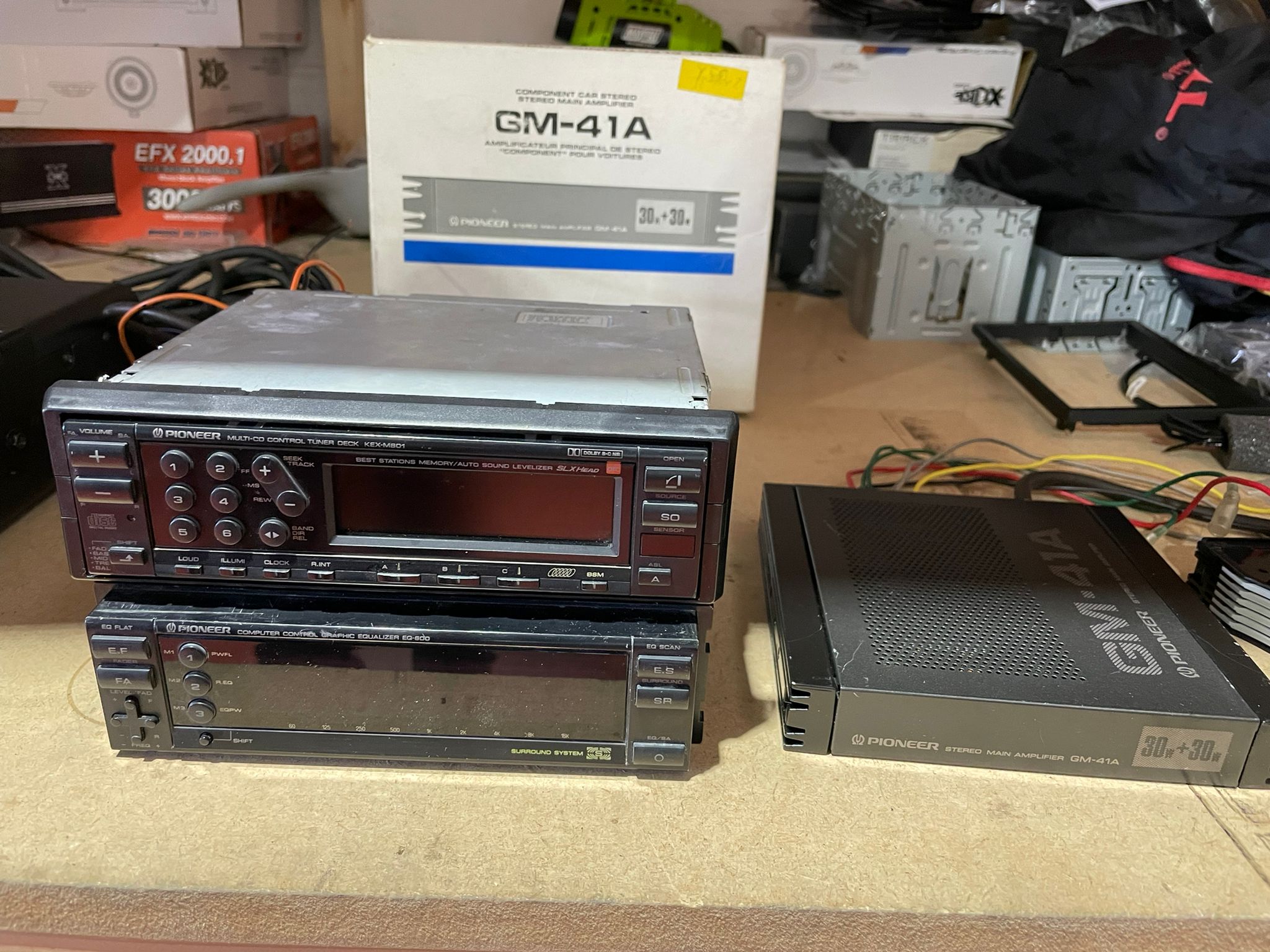

The retro kit consisted of Pioneer cassette/FM radio, Pioneer graphic equaliser, Pioneer amplifier and Pioneer cd multi changer, All in din plug mode before RCA came out.

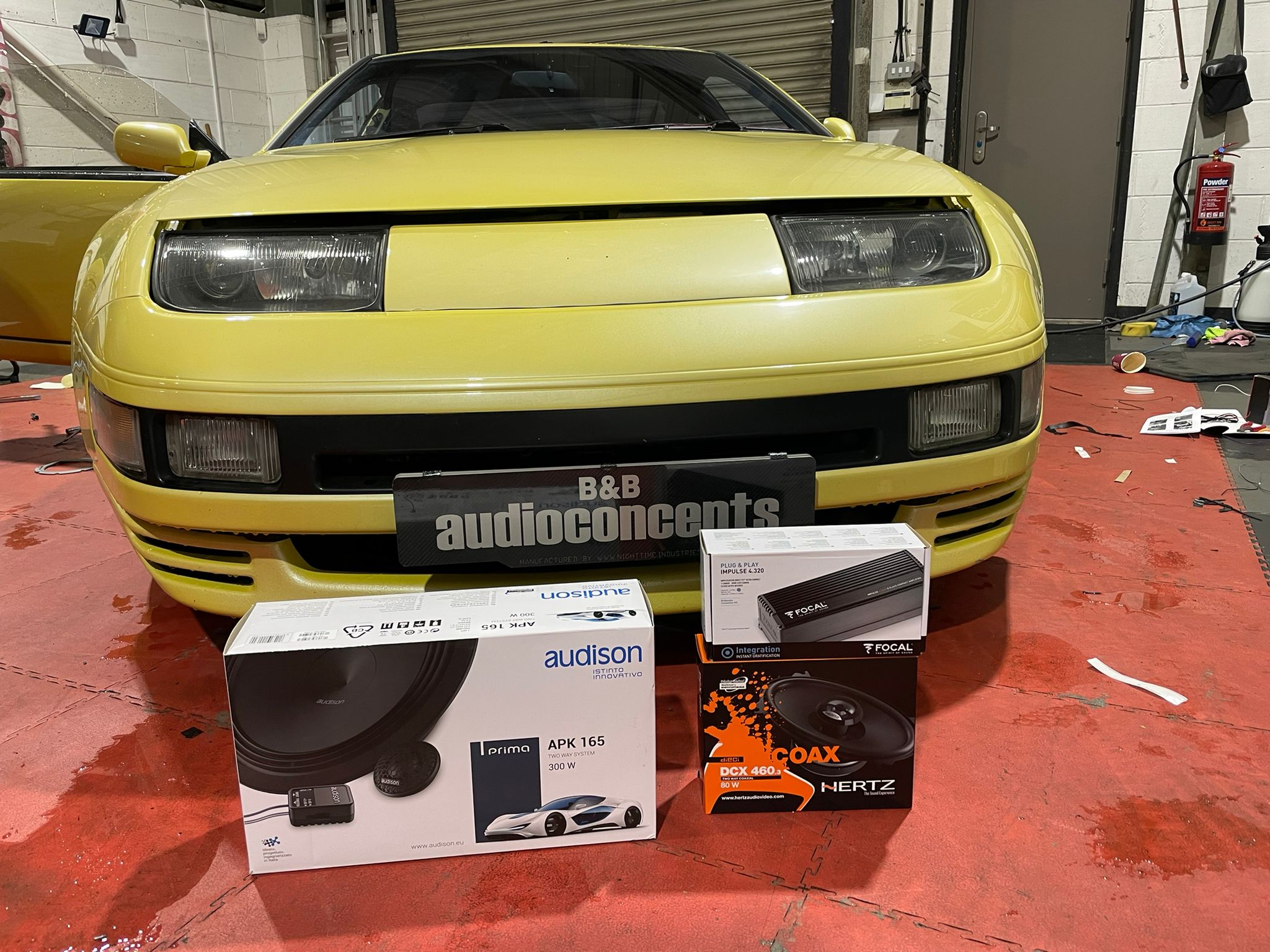

B&B Audioconcepts team then used the Pioneer amp as a preamp to a Focal 4 channel amplifier and added Audison components and Hertz 6×4 coaxial, sounded good but looked awesome, amazing retro visuals.

Nissan 300ZX Retro Audio Upgrade – :

  • Pioneer cassette/FM radio
  • Pioneer graphic equaliser
  • Pioneer amplifier

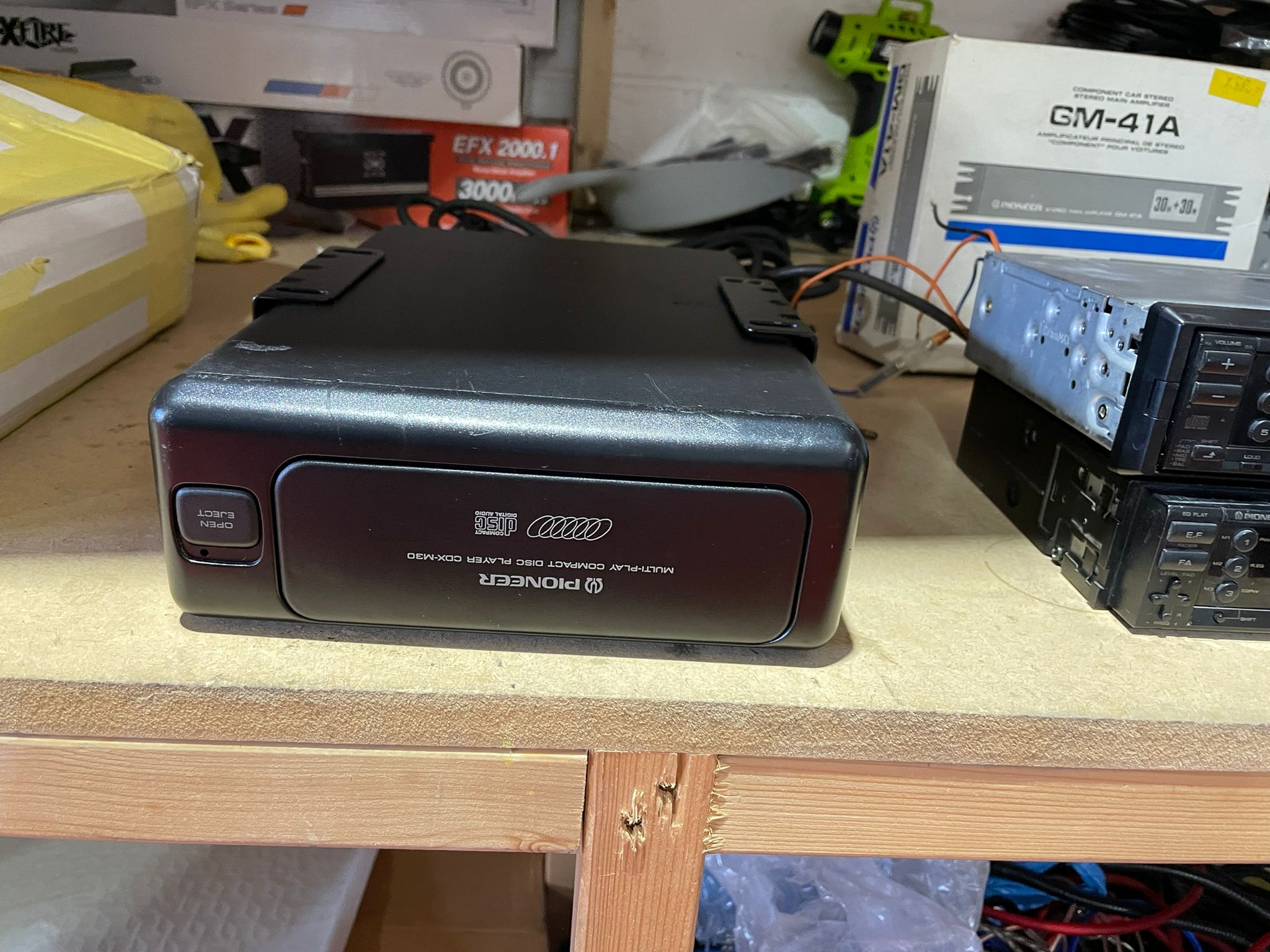

  • Pioneer cd multi changer
  • Focal 4 channel amplifier
  • Audison components
  • Hertz 6×4 coaxial





Focal Impulse 4.320 Compact Amplifier

Give your head unit a breath of fresh air. Head unit amplifiers (whether OEM or aftermarket) soon reveal their limits in terms of power and dynamics. At high volume, they soon saturate and ruin the listening pleasure. To compensate for this and to enable you to get the best out of your speaker drivers, Impulse 4.320 is the ideal solution. It will give your installation a boost without you having to embark on a difficult installation process.

Measuring only 67/8 x 17/8 x 25/8″ (17.65 x 4.6 x 6.7 cm) Impulse 4.320 can easily be concealed within the dashboard or the centre console.

Equipped with high-level (automatic detection feature) and low-level inputs, it is compatible with all head units. Supplied with all fastenings, an adaptor for the head unit’s speaker driver outputs, RCA adaptors for aftermarket head units and power connector, this amp was specially designed to be easy to install. No direct hook up to the vehicle’s battery is required.



Hertz DCX 460.3

This 2-way coax speaker is designed to satisfy specific installation and listening needs. DCX 460.3 features a neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a copper mobile voice coil wound on conex former. An extremely light, yet stiff structure ensures linear frequency response and a high sensitivity level.

Technical Specifications :

Component Two way coaxial
Size mm (in.) (4 x 6)
Power Handling – Continuous W 40
Power Handling – Peak W 80
Impedance Ohm 4
Depth mm (in.) 53 (2.1)
Woofer Voice Coil Ø mm (in.) 25 (1.0)
Frequency Response Hz 65 ÷ 21k
Woofer Magnet size D x d x h mm (in.) 80 x 32 x 10 (3.1 x 1.3 x 0.4)
Weight of one speaker kg (lb.) 0,58 (1.28)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Water-repellent pressed paper
Dome PEI

Audison APK 165

Two way system features AP 1 tweeter and AP 6.5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Technical Specification:

Comp 2 way System
Size 165 mm (6.5″) Woofer
26 mm (1″) Tweeter
46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover
Power Handling 100 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 60 – 20k Hz
Sensitivity 93,5 dB/Spl
