CUSTOM AUDIO UPGRADE – JL AUDIO / AUDISON / FOCAL / ROSEN
Customer broke the bank with this install – £9,000

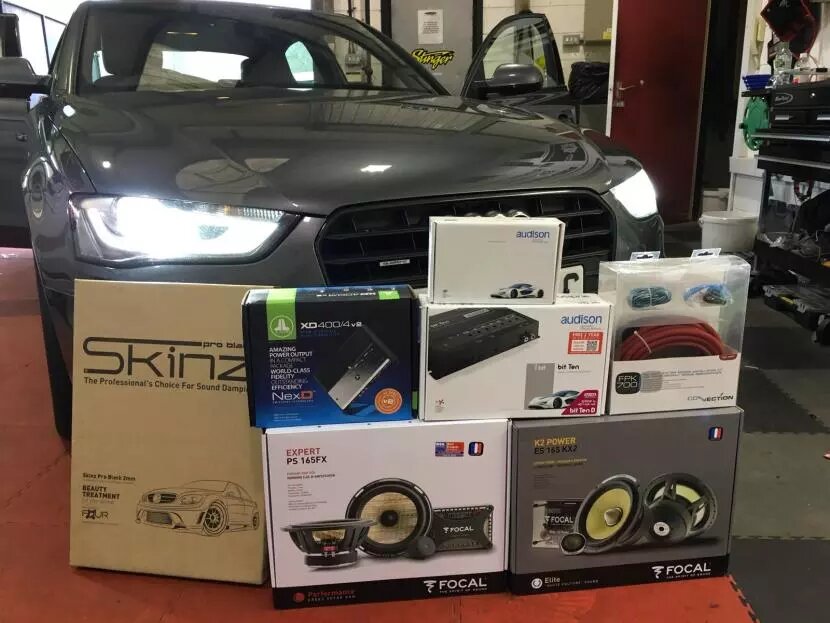

This customer wanted specifically only the best components for a very unique system. B&B Audioconcepts created a lossless audio experience using these components:
>> Audison bit DMI
>> Audison bit TEN D
>> JL Audio xd 4 ch Amplifier

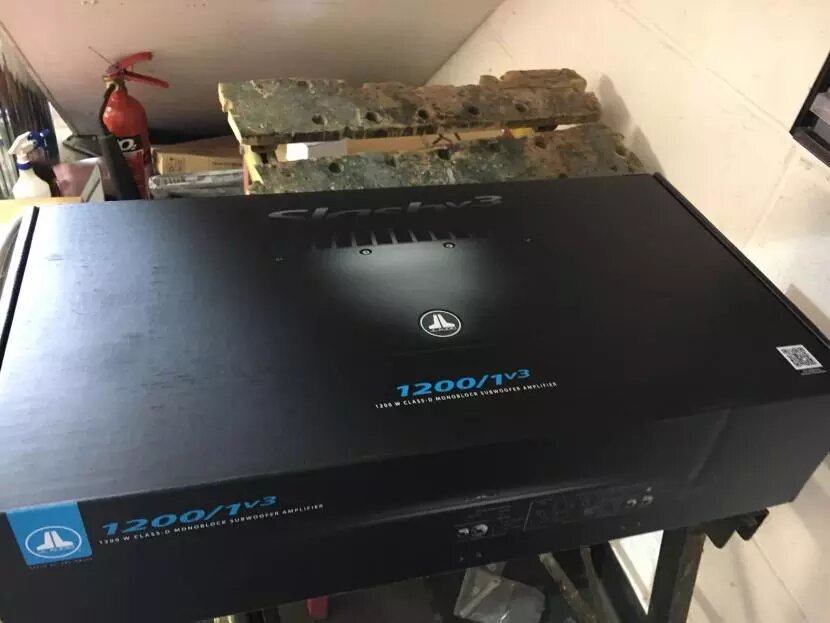

>> JL Audio 1200/v1 Amplifier
>> Twin JL Audio Subs in Custom JL Audio Factory Enclosure
>> Focal K2 Front End
>> Focal Flax Rear End
>> Two boxes of Skinz Soundproofing
>> Viproducts Front Camera input
>> Viproducts Rear Camera
>> Viproducts HDMI Adapter
>> Apple HDMI to Lighting Adapter

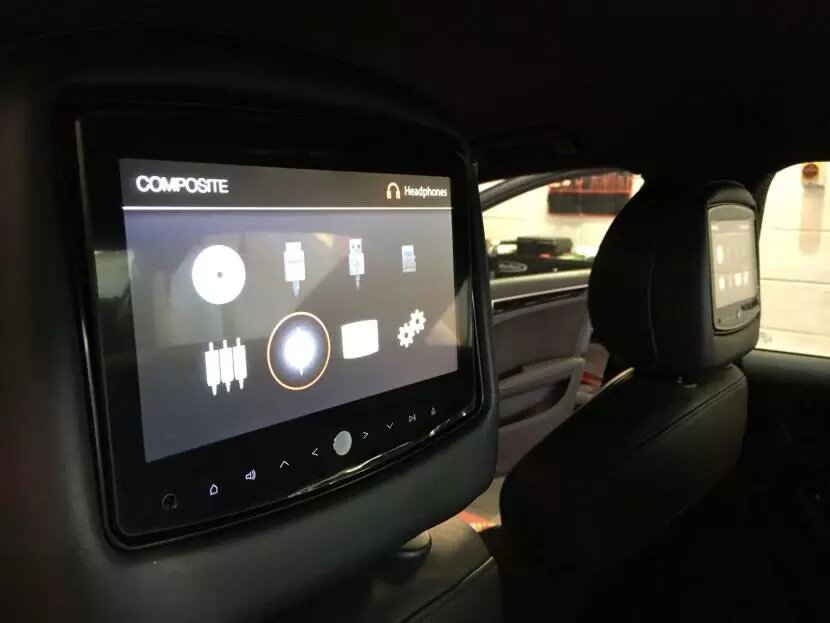

>> Pair of Rosen 8” Rear Screens
>> HDMI Spliter

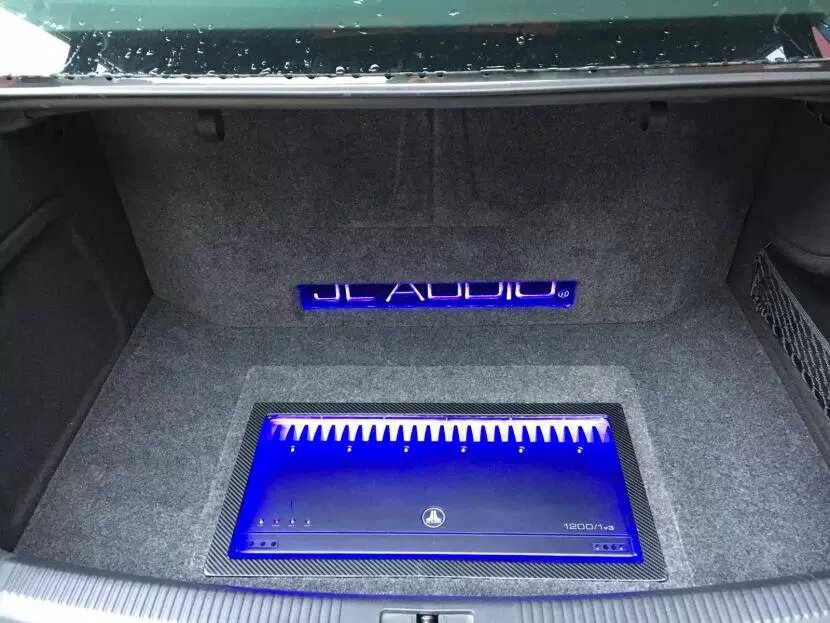

>> Full Boot Build
>> Plenty of Connections Cables
>> Led Lighting
bit TEN D – Audio Processor
bit Ten D is a multi-function digital processor conceived and built to process digital and analogue signal both on the input and on output to the amplifier (featuring AD Link connection) and create top-performance system with any source typology.
Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten D processes the signal with extreme accuracy and wide configurability thanks to a software especially designed for car acoustic peculiarities.
bit Ten D features an optical digital input, minimizing interference and degradations of the signal found in traditional analog interconnects, also by-passing the A/D conversion phases of analog signals.
Thanks to the AD Link connection, the available outputs become 8 in total, all in digital format; they can also be used simultaneously with the analog ones (for a maximum of 8 outputs total).
The AC Link is completely dedicated to the “remote control” of the system. The system is comprised of one connector for the provided DRC and one for the amplifiers present in the system. The DRC is supplied with the bit Ten D product.
bit DMI – Digital Most Interface
bit DMI is a digital interface for MOST systems, providing the ability to connect the Audison bit processors and the Audison amplifiers, equipped with digital input, to OEM multimedia systems in cars featuring the MOST technology based on optical fibre. Thanks to the digital connection, the signal can be transmitted without loss of quality, keeping the audio controls built in the OEM head unit – such as volume, balance and tone controls- as well as the hands-free kit, navigation system and parking sensors alerts unaltered.

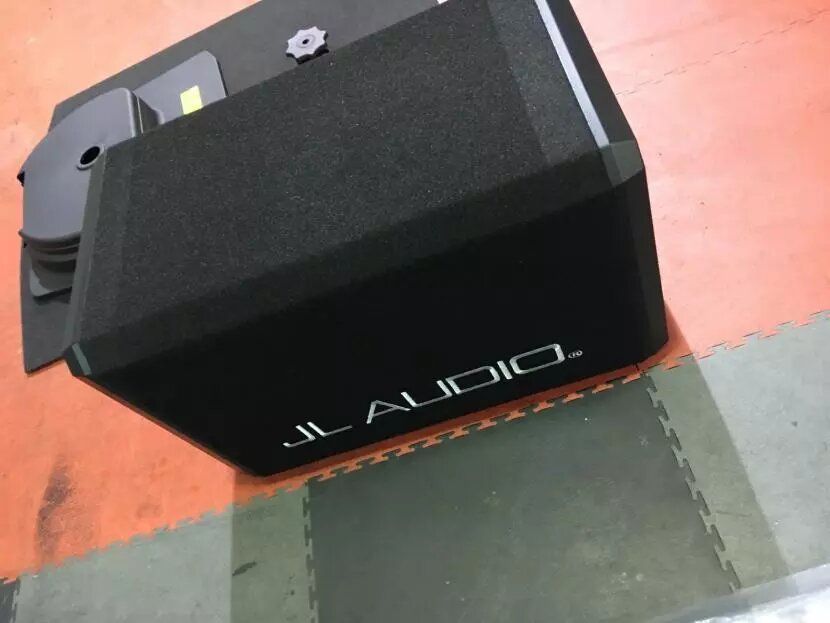

JL Audio Enclosed Subwoofer System
Enclosed Subwoofer System with Dual 12W6v3-D4 Subwoofer Driver, Black Carpet (1200 W, 4 Ω) – Sealed Enclosure. W6v3 ProWedge™ systems incorporate our high-performance W6v3 subwoofer drivers in quality, MDF-constructed, sealed enclosures that deliver smooth, powerful and articulate bass. The drivers and enclosures are designed and built in our Miramar, Florida factory with global components, incorporating multiple patented technologies.
Great bass without the loss of space
It may look like something from a sci-fi movie, but JL Audio’s CS212G-W6v3 dual 12” sub enclosure is actually a design marvel. JL Audio put a W6v3 12” subwoofer into each end of a sealed enclosure that takes up much less room than conventional dual 12″ subwoofer boxes. This system handles up to 1200 watts RMS so it’ll deliver that fat low end you want, and it’s wired to a 4-ohm load for a single amplifier channel.
While they may have cut the corners on the medium density fiberboard (MDF) enclosure, JL didn’t cut corners on quality. They incorporated their V-Groove™ construction to ensure rigid box joints that won’t leak air or resonate. Combined with the slim subs, this new design gives you a sturdy sub box that doesn’t take all your cargo space. JL finished off this ProWedge enclosure with tough polymer grilles on each end that completely protect the subwoofers, unique for an enclosed subwoofer design.
